IP65 IK08 Dimmable Anti-fog Weatherproof Waterproof Underground Warehouse Lights

Model: SCD-TP500

Voltage: AC220-240V  AC85-265V

Specification: 60/120/150cm   18W/36W/50W

Hertz: 50-60Hz

PF: 0.9/0.95

DRIVE: ANL / PHILIPS / LIFUD / BOKE

sensor: Infrared induction/microwave induction

Life: 50000H  3-5-year warranty

LM: >130lm/W  Customizable>180LM/W

CRI: 80

CCT: 2700/4000k/6500k

LED: LED2835 OSRAM CREE LUMILEDS SANAN

Angle: 120°

The above parameters can be customized according to requirements

    Application Environmen

    Application: tunnel; Storage; A garage; Factory; Cold storage; Plant cultivation; Humid environment; Breeding farm; High temperature environment; The basement; The Airport; Subway station;Applications: tunnels; warehouses; garages; factories; cold storage; plant growing; humid environments; farms; hot environments; basements; airports; subway stations; ships; mines; stadiums .

     Product function

    Product function: 0-10v dimming; Doodle smart Bluetooth dimming; DALI dimming; Dip switch current power; High power, high lumen; Sensor; CCT color temperature; Can be connected in series; High temperature and freezing resistance; Vibration resistance

    Product characteristics

    Protection class:  IP65   IK08
    Installation mode: ceiling type; Boom type; Pendant type; Wall mount type
    High efficiency and energy saving【Save operating costs for customers】
    Standard: ISO9001 / CE/ROHS/EMC/FCC/SAA/TUV
    Product life: 50000h Warranty 5 years
    Non-standard customization: Undertake OEM ODM orders

    Advantages of this Triple-Proof Lights

    1. Good protection performance
    Waterproof: Factory warehouse environment may be more complex, sometimes affected by moisture or occasional water splash. The good sealing performance of the all-plastic three-proof light can effectively prevent moisture from entering the interior of the lamps and lanterns, avoiding short-circuiting, leakage and other safety accidents due to water ingress, as well as prolonging the lamps and lanterns' service life.
    Dustproof: there is often more dust in the warehouse, the structural design of the all-plastic three-proof light can effectively block dust from entering and keep the lamps and lanterns clean inside, thus ensuring the luminous efficiency and lighting effect of the lamps and lanterns is stable, and will not reduce the brightness or failures due to the accumulation of dust.

    2.Energy saving and high efficiency
    Excellent optical performance: the all-plastic three-proof light usually adopts high-efficiency lighting source, such as LED lamp beads, with reasonable optical lens or reflector, which can realize good light distribution and high luminous efficacy, and reduce the energy consumption and save the cost of electricity at the same time of meeting the lighting needs of the warehouse.
    Good heat dissipation performance: Although the thermal conductivity of the all-plastic material itself is not as good as that of metal, some all-plastic triple-proof lamps will take into account the heat dissipation problem in the design, through the use of heat dissipation fins, air convection, etc., the heat generated by the lamps and lanterns when they are working is effectively emitted to ensure that the lamps and lanterns of the normal working temperature, improve the service life of the light source and the stability of the light effect.

    3.Convenient installation
    Light weight: the light made of all-plastic material is relatively light weight, easy to install and fix. In the factory warehouse, whether in the high shelves or wall installation, can reduce the labor intensity of the installer and installation difficulties, improve the installation efficiency.
    Various installation methods: all-plastic three-proof light usually has a variety of installation methods, such as ceiling-mounted, wall-mounted, boom-type, etc., according to the actual layout of the warehouse and the lighting needs of the flexible choice of the appropriate installation methods, to adapt to different installation environments and locations.

    Product Details Display

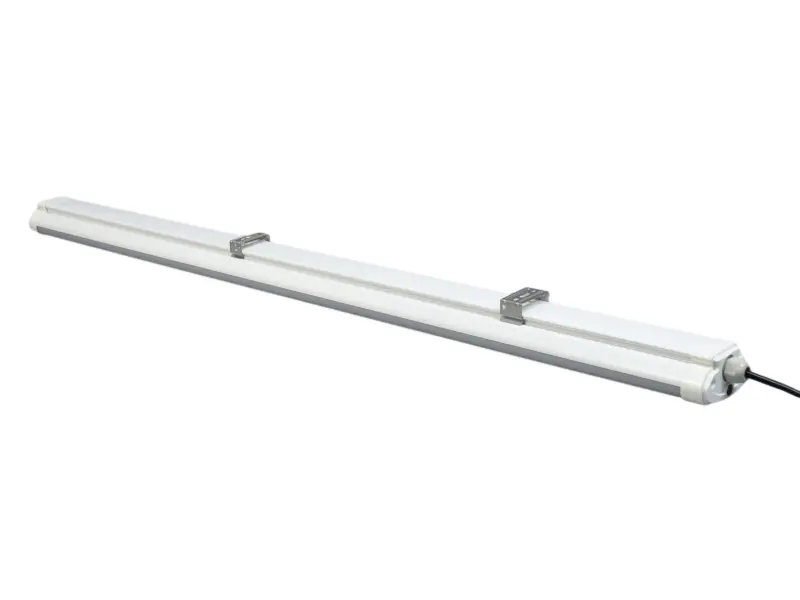

    • SCD-TP500--P1

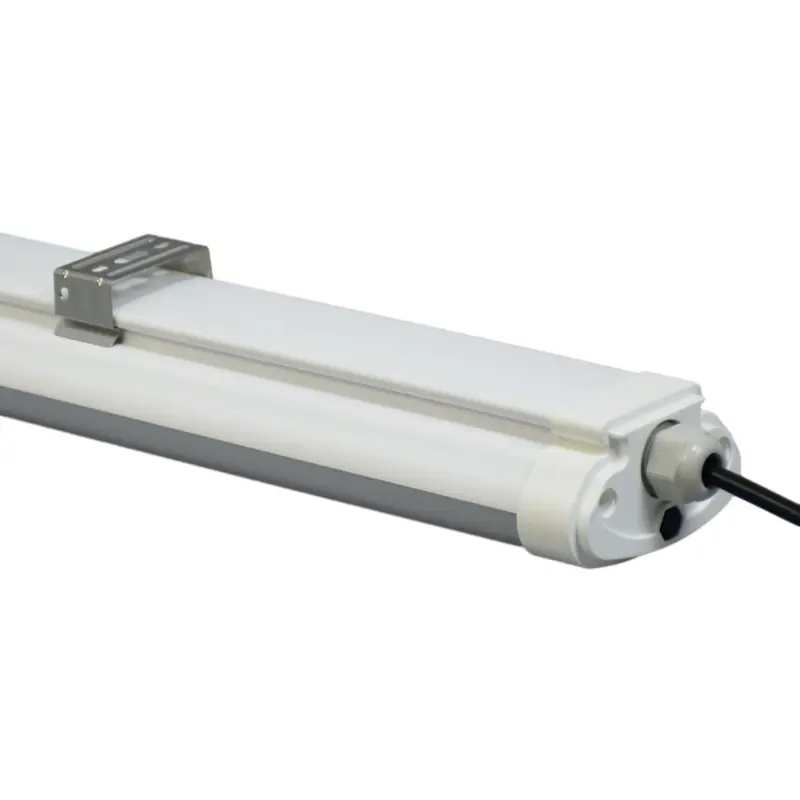

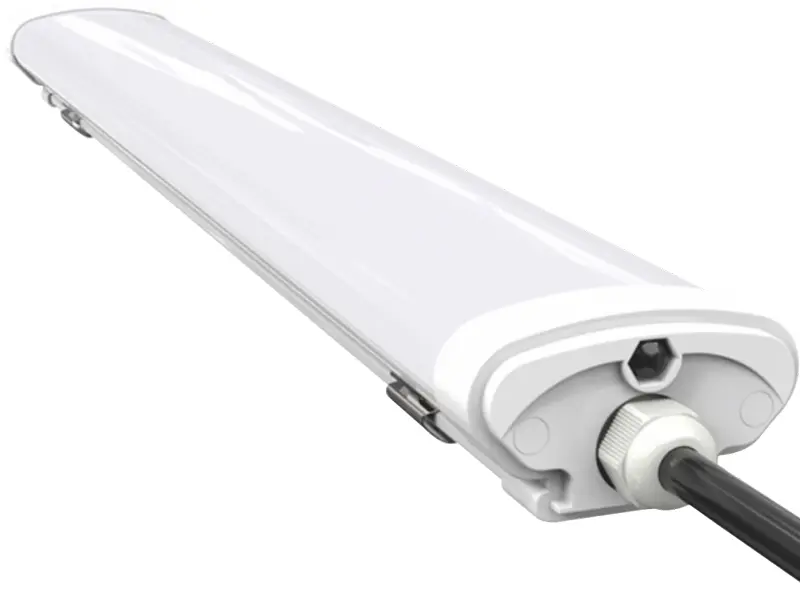

    • SCD-TP500--P2

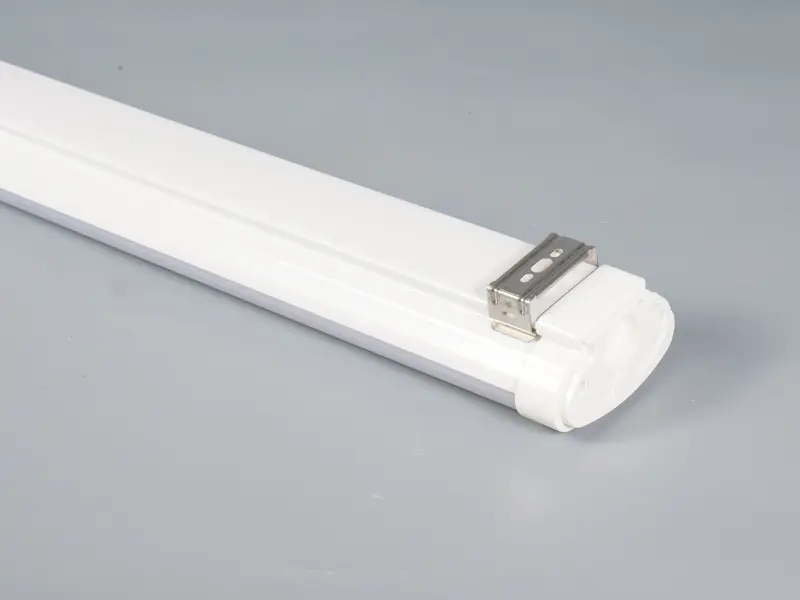

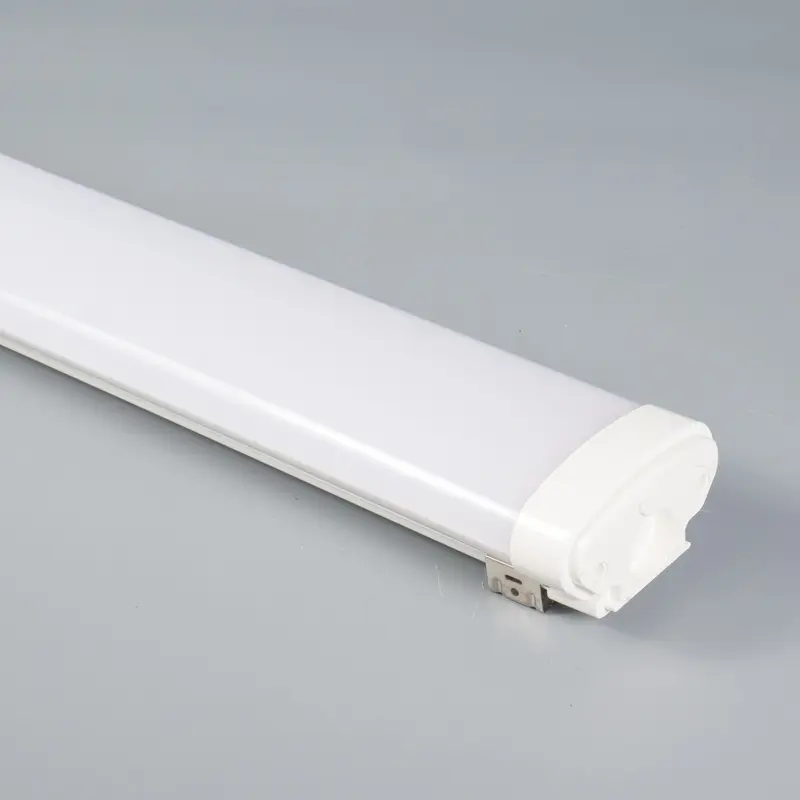

    • SCD-TP500--P3

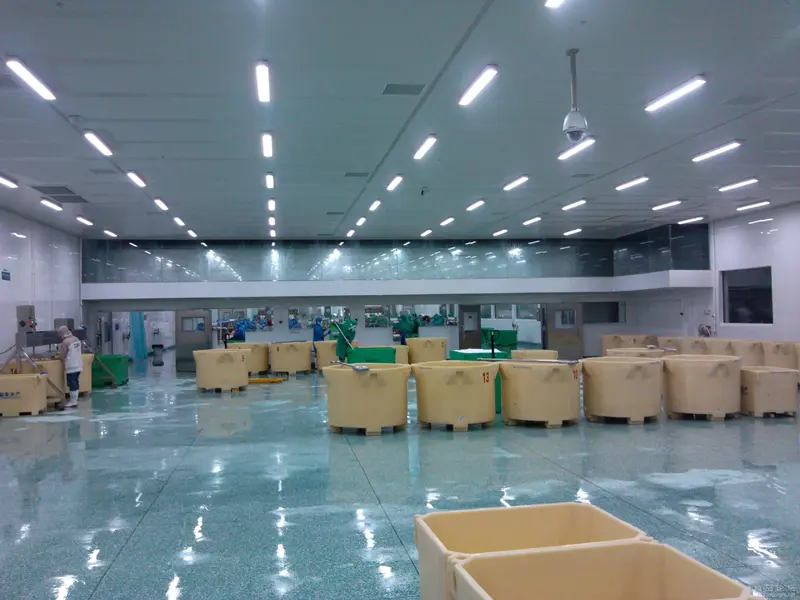

    • SCD-TP500--P4
