Infrared and microwave sensor PIR linear LED Tri-proof lamp

The above parameters can be customized according to requirements

Model :  SCD-TP830

  • Voltage: AC85-277V ACDC24/36V
  • Specification: 60/90/120/150cm 20W/40W/50W/60W
  • Hertz: 50-60Hz
  • PF: 0.95
  • DRIVE: ANL
  • Emergency power: 8W/10W/20W
  • emergency time: 60/90/180min
  • sensor: Infrared induction/microwave inductio
  • Life: 50000H 5-year warranty
  • LM: > 130lm/W Customizable>180LM/W
  • CRI: 80
  • CCT: 2700/4000k/6500k
  • LED: LED2835 OSRAM CREE LUMILEDS SANAN
  • Angle: 120°

Application Environmen

1. Application environment: Tunnel; Warehouse; garage; Factory; Cold storage; airport; Metro Station; Livestock breeding plants; stadium; farm; Generally humid environment; High and low temperature environment; Corrosive environment, etc.

 Product function

2. Product function: 0-10v dimming; Graffiti intelligent Bluetooth dimming; DALI dimming; Ultra high brightness; Battery emergency; Motion sensors; Can be connected in series; Metal casing; Waterproof, Explosion-proof, Dustproof, UV resistant and Corrosion-resistant; High temperature resistance and frost resistance; Anti vibration.

Advantages of this Triple-Proof Lights

1. Product material: reinforced PC (plastic wrapped aluminum)

2. Protection level: IP65 IK10 flame retardant V2 anti-corrosion WF2

3. Installation method: ceiling mounted; Suspension rod type; Hanging wire type; Wall mounted

4. Certification standards: ISO9001/CE/ROHS/EMC/FCC/SAA/TUV



Advantages of Infrared and Microwave Sensor Tri-Proof Lights



Functionality

1. Infrared Sensors: Detect infrared radiation emitted by objects (e.g., humans) with temperatures above absolute zero (-273℃). They trigger lights when movement or presence is sensed within their range, typically 7-9 meters.

2. Microwave Sensors: Emit microwave signals and detect reflections from moving objects using the Doppler effect. They have a longer detection range (8-18 meters) and respond to motion rather than static presence.



Why Use Infrared and Microwave Technologies

1. Energy Efficiency: Both sensors automatically activate lights only when needed, reducing unnecessary energy consumption.

2. Reliability: Infrared sensors are cost-effective and reliable for detecting presence, while microwave sensors offer longer-range detection and faster response to motion.

3. Adaptability: Infrared is suitable for indoor settings with minimal movement, whereas microwave sensors excel in outdoor environments with larger coverage areas.

4. Durability: Tri-proof lights with these sensors are designed to withstand harsh conditions, making them ideal for various applications.

By combining these technologies, Tri-proof lights optimize performance, energy savings, and adaptability to diverse environments.

Product Details Display

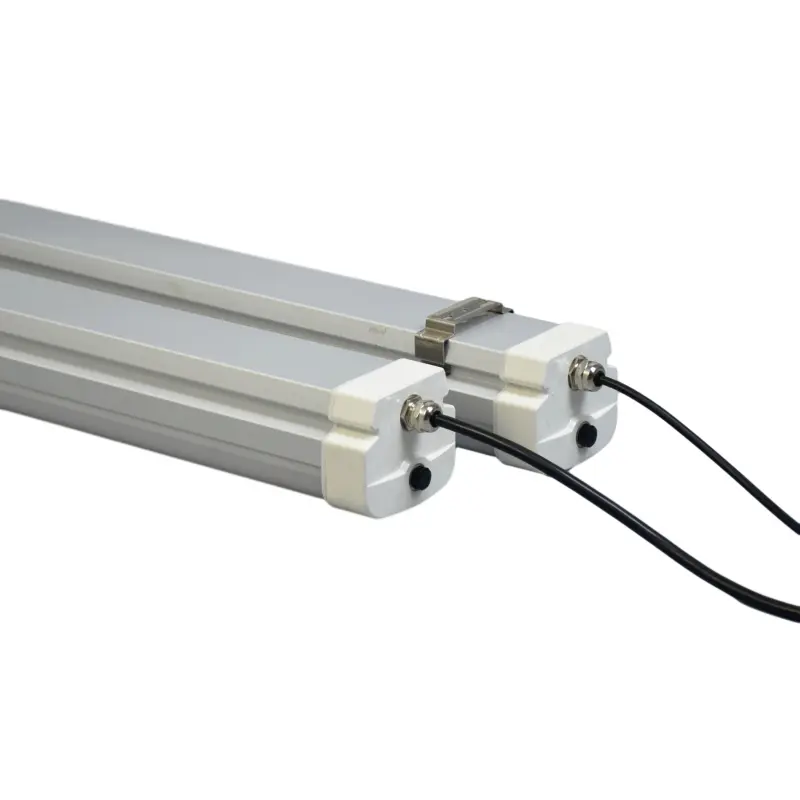

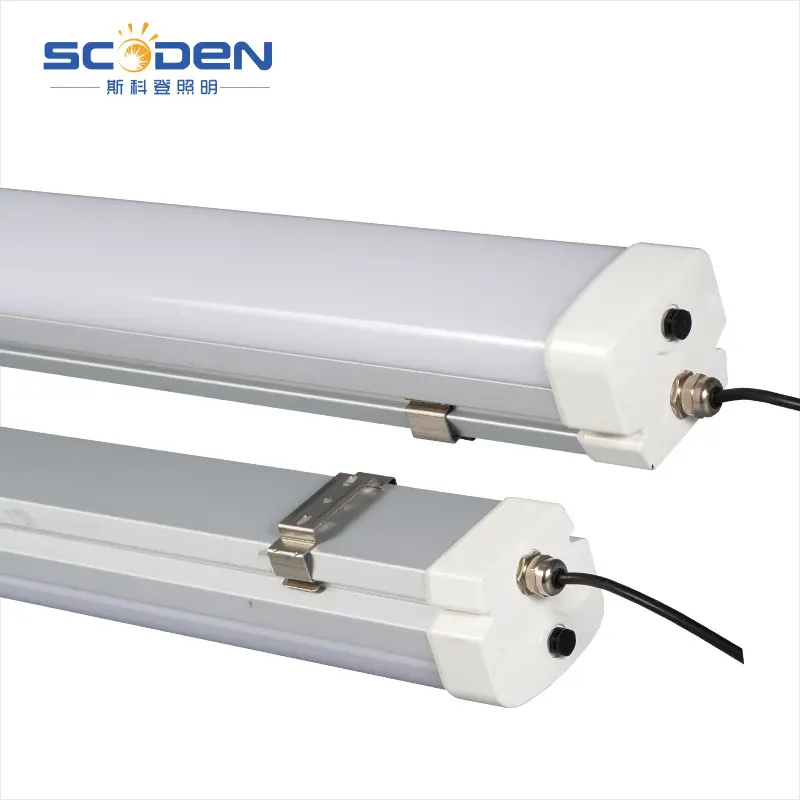

SCD-TL830  P3SCD-TP830主图 (2)SCD-TP830主图 (3)
